What's needed is a definitive, engineering-based assessment that provides clarity on the true condition of the equipment. Shutting down for replacement means significant capital expenditure and lost production, while continuing to operate without confidence in the asset's structural integrity introduces unacceptable risk.

This is where modern fitness-for-service (FFS) assessment comes in. FFS assessment methods offer a systematic, data-driven approach to evaluating corroded or damaged assets and making informed decisions about their future.

The Limitations of Traditional Inspection

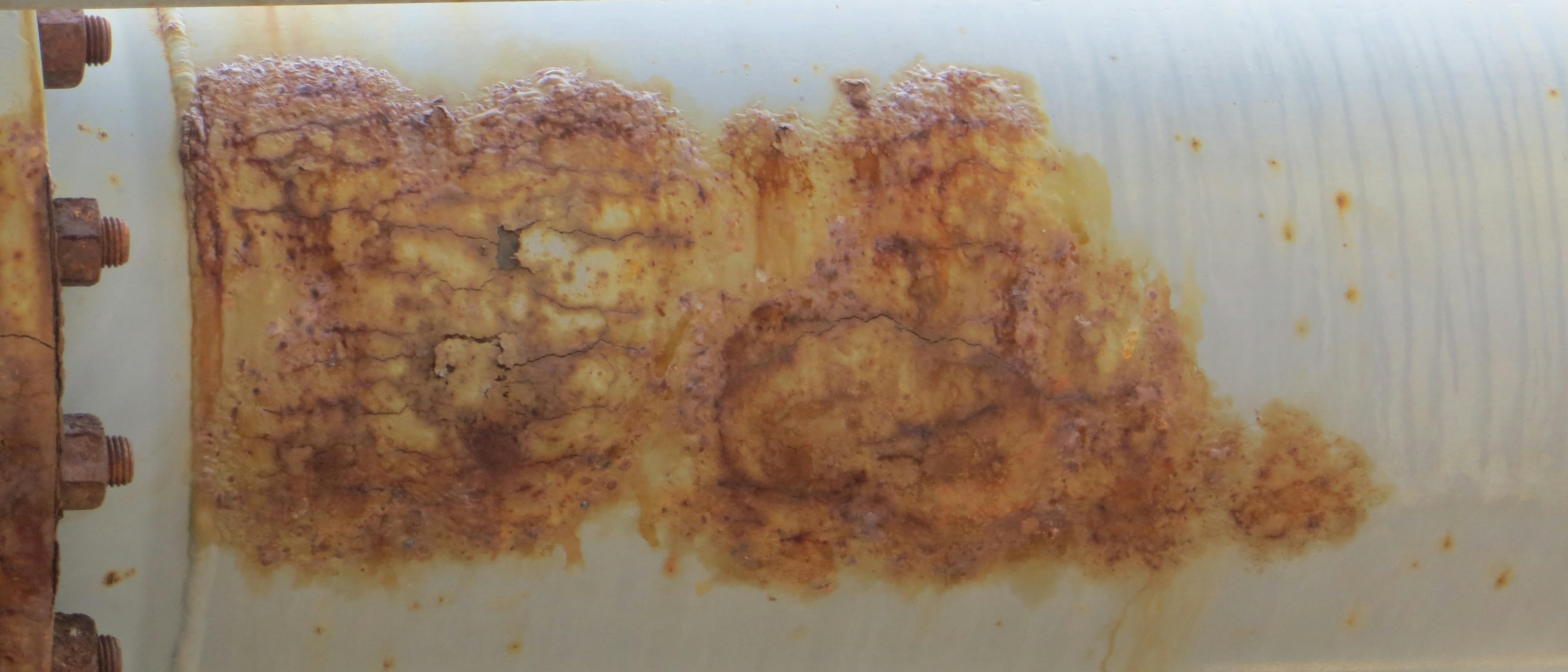

Visual inspection and wall thickness measurements are essential first steps in identifying and quantifying the extent of damage. They tell you where material loss has occurred and how much material has been lost. However, this data alone doesn’t tell a complete story.

Thickness measurements provide snapshots of local conditions, but they don’t reveal how those conditions affect the overall structural integrity of the equipment under operating conditions. Without understanding the relationship between measured corrosion and remaining structural capacity, asset managers are left making decisions with incomplete information.

This gap in understanding typically leads to one of two outcomes:

• Premature retirement of equipment based on conservative thickness criteria, even when the asset may have significant remaining structural capacity. This results in unnecessary capital expenditure and lost production time;

• Continued operation with uncertainty about risk levels, where the true risk level remains unclear. Asset managers lack the engineering confidence needed to definitively support their decision to keep the equipment in service.

As assets age and operators look to extend service life, bridging this gap between inspection data and structural integrity becomes critical. Advanced engineering assessment methods provide that bridge, translating measurement data into clear answers about fitness-for-servic

A Systematic Approach to FFS Assessment

Modern FFS assessment methodology provides a structured, engineering-based framework for evaluating corroded equipment. Rather than relying on conservative rules of thumb, this approach uses actual measured data combined with advanced analysis techniques to determine the true remaining capacity of your asset.

The assessment process draws from several complementary tools and methodologies:

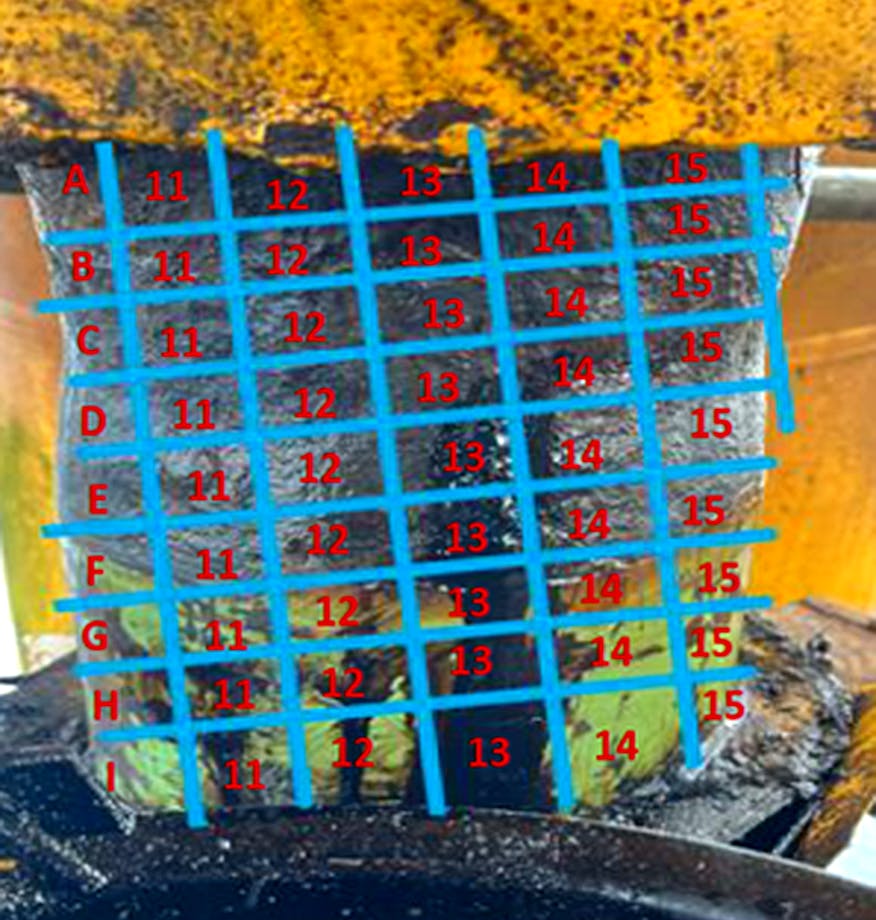

1. Detailed Wall Thickness Mapping

High-resolution scanning techniques capture the actual geometry of corroded areas, creating a comprehensive picture of material loss across the asset.

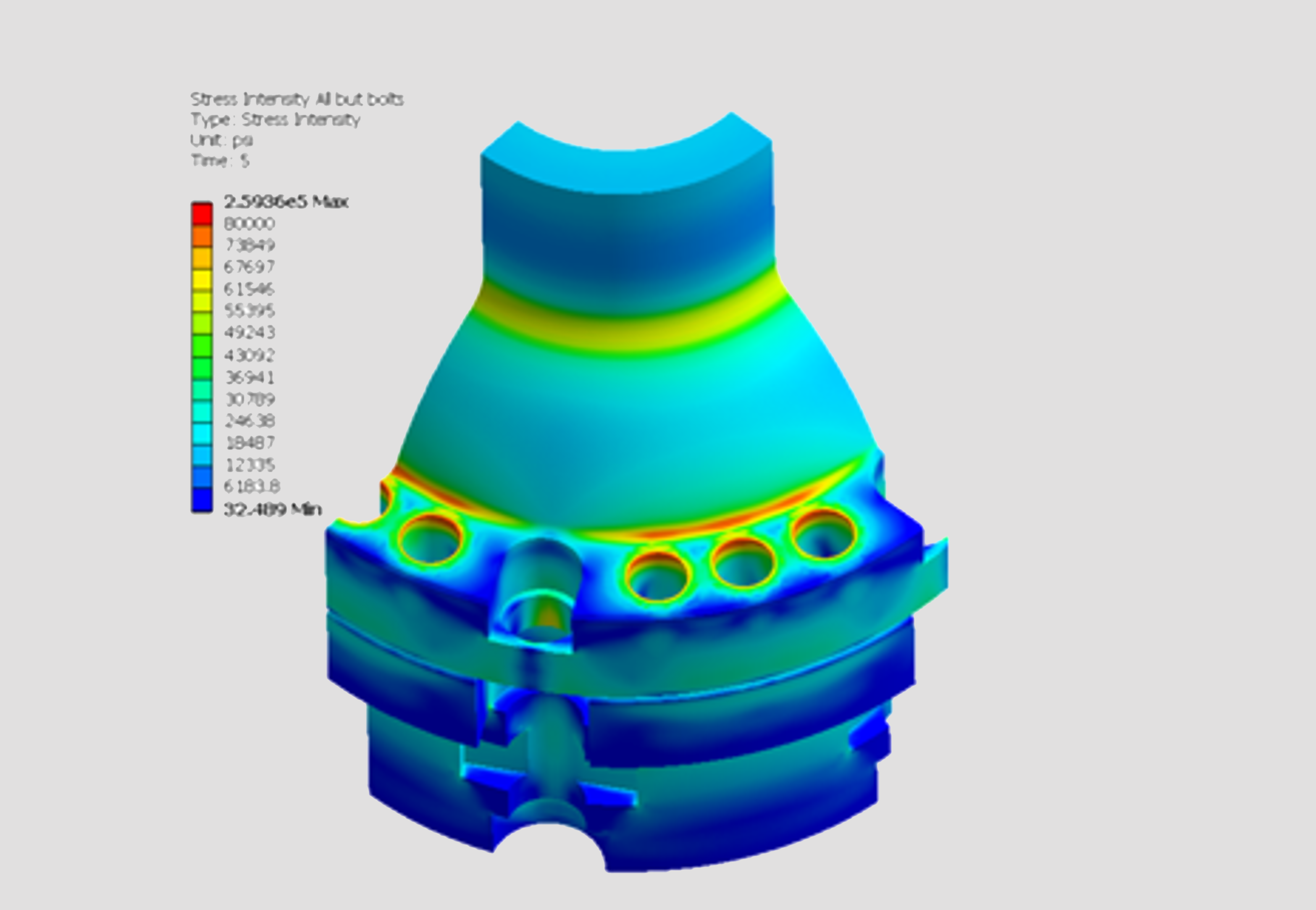

2. Advanced Finite Element Modeling

Scan data is used to build detailed models that represent the actual, as-corroded condition of your equipment—not an idealised version of what it should look like.

3. FFS-Specific Code Assessment

For many situations, comprehensive FFS codes like ASME FFS-1/API-579-1 provide systematic evaluation procedures specifically designed for assessing corroded and damaged equipment. These codes offer structured approaches to determine remaining capacity based on the nature and extent of damage.

4. Nonlinear Finite Element Analysis

When warranted, sophisticated nonlinear analysis methods can simulate how corroded equipment will behave under actual operating conditions. This approach accounts for complex stress distributions, material behavior, and loading scenarios that simplified calculations cannot capture. Standards such as DNV-RP-C208 provide a framework for these advanced assessments.

The right combination of these methods depends on your specific situation, the type of equipment, the nature of the corrosion, operating conditions, and applicable regulatory requirements.

From Risers to Pressure Vessels: Broad Applicability

While corroded risers and process piping are a common application of this methodology, the same principles apply across a wide range of subsea and topside equipment. Corroded pipeline sections, pressure vessels, wellhead components, and structural elements can all benefit from rigorous FFS assessment.

The key is having the expertise to properly implement the methodology: understanding which standard is most appropriate for your specific situation, correctly interpreting scan data, building representative models, and applying the right analysis techniques.

The Value of Getting It Right

A comprehensive FFS assessment gives you something invaluable: confidence in your decision. When the analysis shows your equipment can continue operating safely, you avoid unnecessary shutdowns and premature replacement costs. When it indicates that intervention is needed, you have clear, defensible data to support that decision and mitigate risks. Either way, you're making informed choices based on engineering reality rather than uncertainty.

For aging assets, this approach can extend operational life by years, providing significant value while maintaining safety and integrity. For newer equipment with localised corrosion issues, it can prevent overreaction and unnecessary expense. Corrosion doesn't have to mean immediate replacement. With the right assessment approach, you can make confident, data-driven decisions about your corroded assets.

At 2H, we specialise in advanced FFS assessments for subsea and offshore equipment. Our team has extensive experience applying advanced FFS methodologies and analysis techniques to real-world corrosion challenges and can work with you to turn inspection data into actionable engineering insights.
