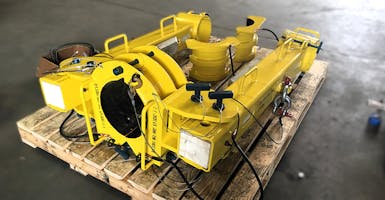

ROV retrievable design

14” ID clamp

Allows re-use for batch TTR installations to reduce overall  hardware CAPEX

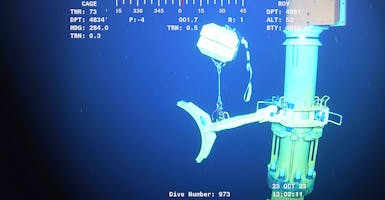

ROV installable and recoverable clamp and arm assembly for 21” OD drilling riser

Designed to support a hinged sheave for special riser pull in operations

Expedited delivery to meet tight project deadline

Clamp designed to mitigate buoyancy clamp stem corrosion

Clamp designed to reinforce air can upper stem connection

Full scale FAT performed to confirm design

Enabled continued operation of asset

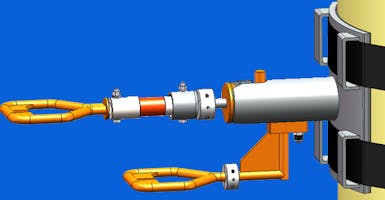

Plug designed to vent a subsea wellhead annulus using ROV

Diver installed and ROV operated

Provided ability to check integrity of the well avoiding diver mobilisation

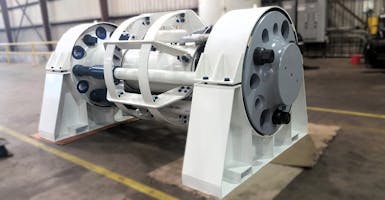

Used to adapt standard MPD riser joints to various OEM 21-3/4” drilling risers

Expedited design-build delivery in as little as 12 weeks

DNV/ABS certification

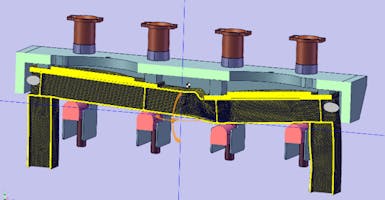

Specialist hardware designed to strengthen a damaged i-beam subsea

Hardware allowed asset to remain in service without pulling to surface for repair

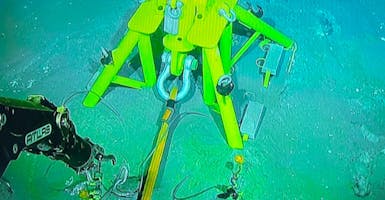

Allows for vertical stab in make-up of riser holdback line

Automatic self-righting mechanism upon unloading

20 year design life

Multi-purpose design for riser pull in operations and emergency riser offset operations

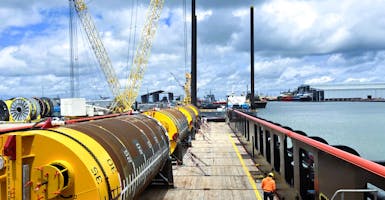

12.75’ OD x 35’ long

Designed to be recovered and re-installed for life of field

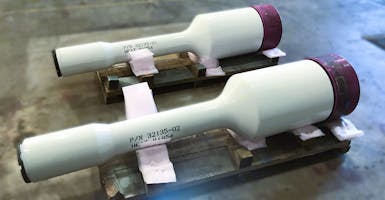

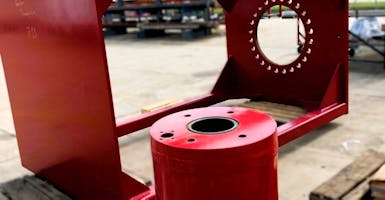

Test fixtures for FAT, SIT and qualification testing

E.g: API Specification 16RCD Stripping Test Qualification

E.g: API Specification 16A Annular BOP Qualification Testing

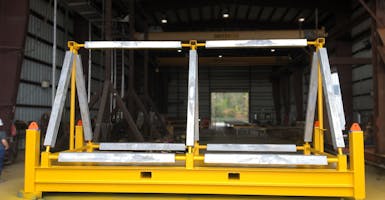

Increased cathodic protection of existing asset to meet target design life

9’ x 23’ footprint

Included installation and commissioning procedures

DNV-ST-E273 certification

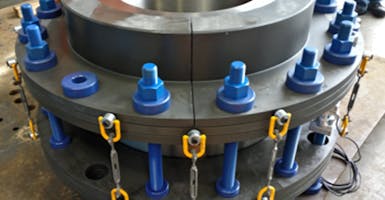

Retrofit wellhead reinforcement clamp

Segmented design to allow for diver handling and makeup

Designed in accordance with ISO 13628-7 to manage misalignment and loading between separated low and high pressure housings.

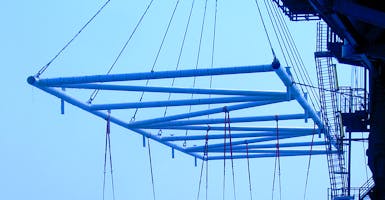

Total of 3 different spreader frame designs for installation of 20 rigid jumpers with varying diameters, lengths and shapes.

Designed for full installation sequence including simulation of vessel motions and lowering to seabed.

Structural strength checks performed in accordance with API RP 2A.

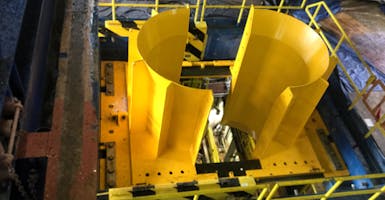

Centraliser to increase installation weather windows TTR installation from a TLP

Sliding retractable mechanism to increase opening for larger diameter equipment

Fully load tested during FAT testing

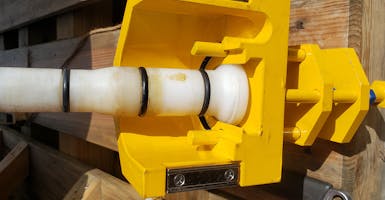

Specialist tool to remove a damaged ‘stuck’ dummy hotstab from subsea hardware >4000ft water depth

ROV installable and operated

Magnetic retention system to assist ROV installation

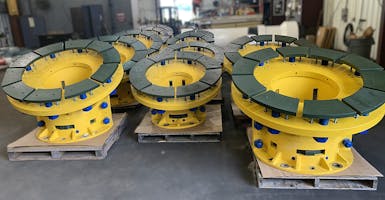

Bespoke clamp designed to structurally support flexible jumper i-tube

Diver installed

Unique design to tightly fit each I-tube

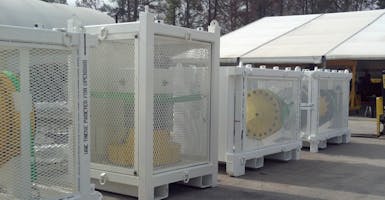

Design-build to suit equipment specifications

Baskets designed and certified to DNV 2.7.1

Used for specialty riser joint handling

6-5/8" FH to 14" T&C riser joint

~4ft long
